2 Valve Manifolds
This series of 2 Valve Manifolds combines valves into one block to perform isolation, bleed and calibration of pressure transmitters, gauges and switches. Process, Instrument and Vent connections can be provided in a variety of sizes and threaded forms including NPT, BSPT and BSPP. Several models of brackets are supplied to realize the installation both on site and on panels.
General features
- Tee bar easy manoeuvrability with minimum effort
- PFTE packing standard, optional Grafoil
- Stainless steel construction as standard
- Colour coded functional identification
- Externally adjustable gland
- Variety of end connections
- Dust cap to prevent contaminations on the operating thread
General specifications
- Pressure up to 10,000 PSI (690 Bar)
- Temperature rating PFTE packing from -73°C to 210°C (99°F / +410°F)
- Temperature rating Grafoil packing from -54°C to +510°C (-65°F / +950°F)
- Standard orifice diameter 4.0 mm
- Standard 316L stainless steel (other materials available)

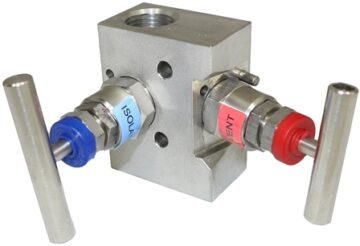

S62NRF88S – 6,000 PSI
S102NRF88S – 10,000 PSI
- Mainly used in remote mounting applications
- ½” NPT-F / ½” NPT-F
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available
S62NRAF88S – 6,000 PSI
S102NRAF88S – 10,000 PSI
- Mainly used in remote mounting applications
- ½” NPT-F / ½” NPT-F
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available

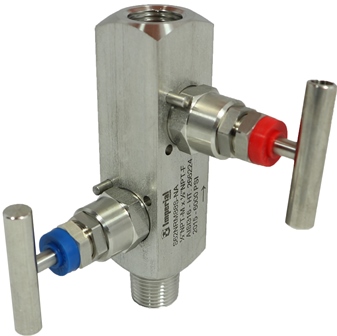

S62NRMF88S – 6,000 PSI
S102NRMF88S – 10,000 PSI
- Mainly used in remote mounting applications
- ½”NPT-F / ½”NPT-M
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available

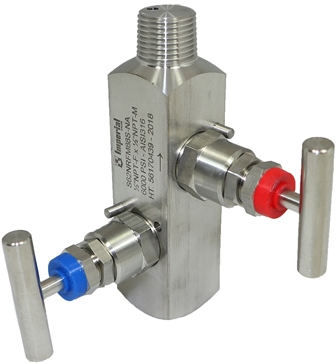

S62NRFM88S – 6,000 PSI
S102NRFM88S – 10,000 PSI
- Mainly used in remote mounting applications
- ½”NPT-F / ½”NPT-M
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available

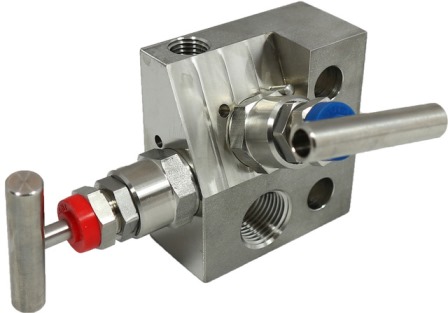

S62NHD8S – 6,000 PSI
- Mainly used in direct mounting applications
- IEC 61518 type A connection to transmitter standard
- Stainless steel mounting bolts to transmitter available
- PTFE and Grafoil O rings available
- ½”NPT-F / IEC61518/A
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available

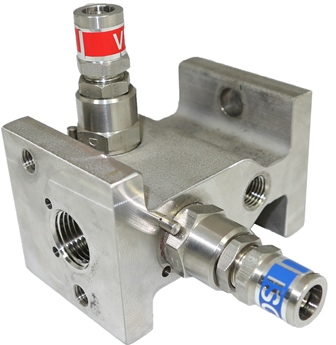

S62NWD8S – 6,000 PSI
- Mainly used in direct mounting applications
- IEC 61518 type A connection to transmitter standard
- Stainless steel mounting bolts to transmitter available
- PTFE and Grafoil O rings available
- ½” NPT-F / IEC 61518/A
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available

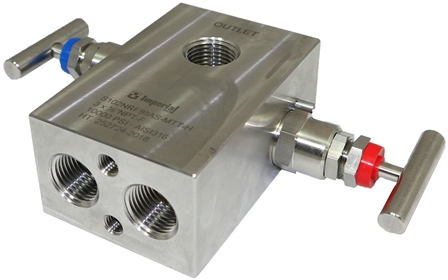

S62NRF88AS – 6,000 PSI
S102NRF88AS – 10,000 PSI
- Mainly used in remote mounting applications
- BB 3 x ½”NPT
- Including accessories: Plug
- Mounting on to 2″ N.B. pipe stand available
